Understanding solar panel connections is crucial for optimizing energy systems. Series and parallel configurations are the primary methods, each offering unique advantages in voltage, current, and efficiency. Proper configuration ensures maximum energy output and system safety, making it essential for both residential and commercial installations.
1.1 Basic Principles of Solar Panel Wiring
Solar panel wiring involves connecting panels in series or parallel to achieve desired voltage and current levels. Series connections increase voltage while maintaining current, while parallel connections increase current at the same voltage. Proper wiring ensures optimal energy output, efficiency, and safety. Factors like shading, temperature, and load matching must be considered for effective system design and performance.
1.2 Importance of Series and Parallel Configurations
Series and parallel configurations are essential for optimizing solar panel systems. Series connections increase voltage, ideal for high-voltage applications, while parallel connections boost current, suitable for low-voltage systems. Balancing these configurations ensures compatibility with inverters, batteries, and other components, maximizing energy output and system efficiency. Proper configuration choice is critical for safety, performance, and cost-effectiveness in solar energy systems.
Solar Panels Connected in Series
Solar panels connected in series increase voltage while maintaining current, ideal for high-voltage applications and minimizing energy loss over long distances.
2.1 Voltage and Current Characteristics in Series Connections
In a series connection, the total voltage increases while the current remains the same as that of a single panel. This configuration is efficient for high-voltage applications and minimizes energy loss over long distances. Each panel’s voltage adds up, but the current stays consistent, making it suitable for systems requiring higher voltage inputs, such as grid-tie inverters or charge controllers.
2.2 Advantages of Series Connections for Solar Panels
Series connections are ideal for high-voltage applications, as they increase total voltage while maintaining consistent current. This configuration minimizes energy loss over long distances, making it efficient for larger systems. It also simplifies wiring and reduces the risk of overcurrent issues, ensuring optimal performance in grid-tie and off-grid setups where higher voltage is required.
Solar Panels Connected in Parallel
Parallel connections combine the current of each panel while maintaining voltage, ideal for battery charging and systems requiring higher current. This setup provides flexibility in varying sunlight conditions, ensuring consistent energy output even if one panel underperforms.
3.1 Voltage and Current Characteristics in Parallel Connections
In parallel connections, the voltage of each solar panel remains the same, while the total current is the sum of individual panel currents. This configuration is ideal for systems requiring higher current output at a consistent voltage, making it suitable for battery charging and applications where consistent energy supply is critical, even when individual panels perform unevenly.
3.2 Advantages of Parallel Connections for Solar Panels
Parallel connections offer redundancy, ensuring consistent energy supply even if one panel underperforms. This configuration is ideal for systems requiring stable voltage, like battery charging. Scalability is easier as panels can be added without affecting existing voltage levels. It’s beneficial for minimizing individual panel performance variability, enhancing overall system reliability and efficiency in various applications effectively.
Hybrid Configurations: Combination of Series and Parallel
Hybrid configurations combine series and parallel connections, offering flexibility and scalability. This setup balances voltage and current to meet specific energy needs, enhancing system adaptability for various applications effectively.
4.1 Designing a Mixed Configuration for Optimal Performance
Designing a hybrid configuration involves combining series and parallel connections to maximize energy output; This setup allows for flexibility in balancing voltage and current, ensuring compatibility with various systems. Proper calculation of voltage and current is essential to avoid overloading. Using MPPT controllers and advanced software tools can optimize performance. This approach is ideal for systems requiring scalability and adaptability to different energy demands effectively.
4.2 Calculating Voltage and Current in Hybrid Systems
In hybrid systems, voltage and current calculations require understanding both series and parallel behaviors. Total voltage is the sum of series-connected panels, while current equals the highest current in parallel branches. Using MPPT controllers and detailed panel specifications ensures accurate calculations. Proper sizing of conductors and overcurrent protection is critical to maintain system efficiency and safety, especially in mixed configurations.
Applications of Series and Parallel Solar Panel Connections
Solar panel connections are widely used in residential, commercial, and off-grid systems. Series connections are ideal for high-voltage applications, while parallel connections suit low-voltage, high-current needs, ensuring efficient energy distribution.
5.1 Residential Solar Systems

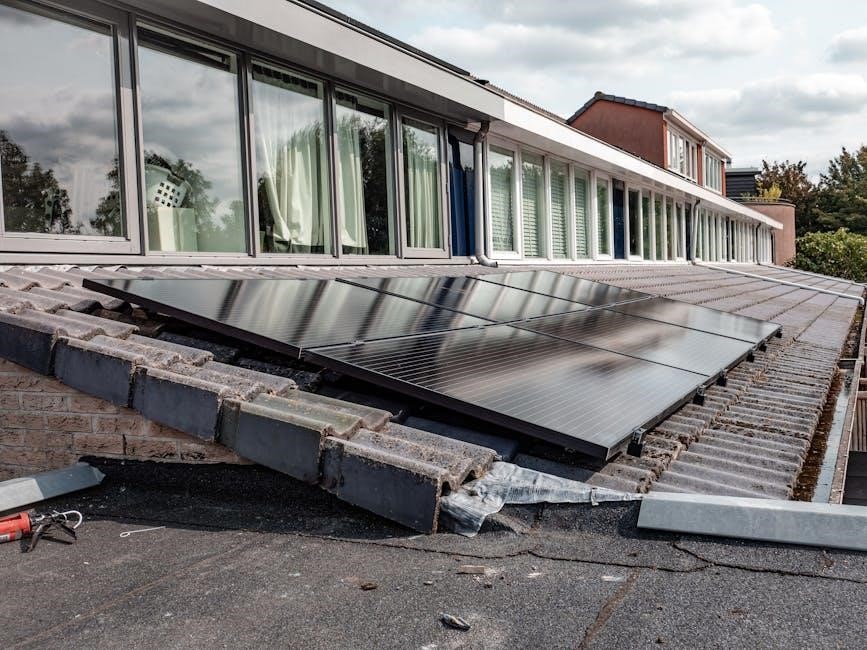

In residential setups, solar panels are often connected in series to achieve higher voltage for inverters or parallel to increase current for battery charging. This configuration balances energy needs, ensuring efficient power distribution. Homeowners benefit from tailored systems that match their energy demands, whether for grid-tie or off-grid solutions, optimizing performance and reliability while minimizing installation complexities.
5.2 Commercial and Industrial Solar Systems
In commercial and industrial settings, solar panels are often connected in series to achieve higher voltage, matching inverter requirements, or in parallel to enhance scalability and redundancy. This configuration ensures reliable energy supply, optimizing performance for large-scale operations. Businesses benefit from efficient energy management, reduced costs, and increased system robustness, making solar a viable solution for industrial power demands and sustainability goals.
5.3 Off-Grid and Battery-Based Systems

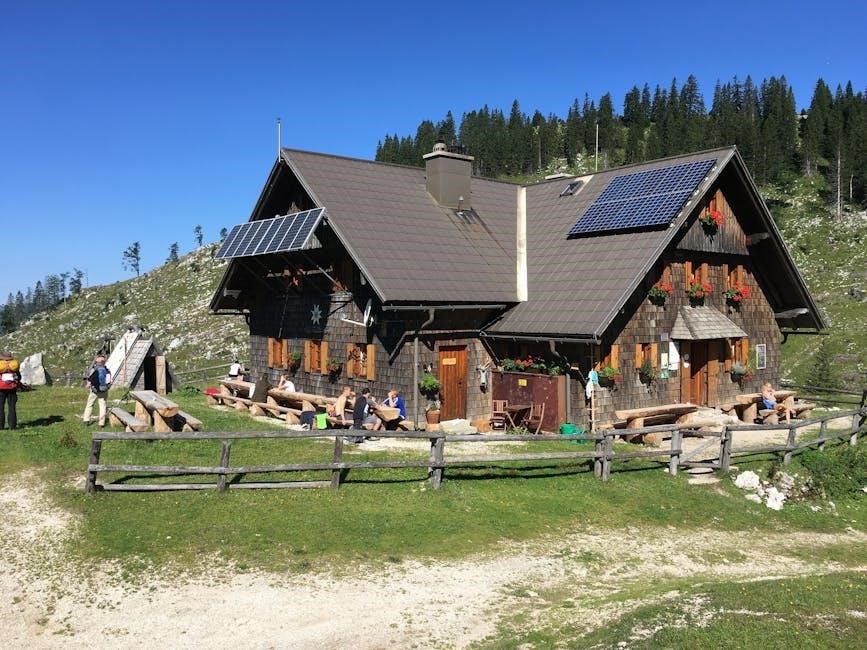

In off-grid and battery-based systems, solar panels are often connected in series to achieve higher voltages for efficient battery charging. Parallel connections increase current, enhancing system reliability under low-light conditions. MPPT controllers optimize energy transfer, especially in series configurations. This setup ensures consistent power supply and maximizes energy storage, making it ideal for remote locations with variable sunlight.
Troubleshooting Common Issues in Solar Panel Connections
Common issues include zero power output, low voltage, and overcurrent. Faults in series connections often stem from open circuits, while parallel issues may arise from short circuits. Proper fault identification techniques and regular maintenance are essential to ensure system reliability and safety.
6.1 Identifying Faults in Series Connections
In series connections, common faults include open circuits, low voltage, and mismatched panels. An open circuit in one panel can shut down the entire series, while mismatched panels reduce efficiency. Loose connections and faulty panels often cause low voltage. Regular inspection and testing with multimeters can help identify these issues. Using an MPPT controller can also monitor and detect faults in real-time, ensuring optimal performance.
6.2 Identifying Faults in Parallel Connections
In parallel connections, common issues include overcurrent conditions, inconsistent voltage across panels, and reverse polarity. Overcurrent can cause overheating and damage to wiring. Inconsistent voltage may reduce overall efficiency, while reverse polarity can harm inverters or charge controllers. Regular inspection of connections and using monitoring tools can help detect these faults. Proper installation and balanced panel configurations mitigate such risks effectively.
Maximum Power Point Tracking (MPPT) in Series and Parallel Systems
MPPT optimizes energy output by tracking and adjusting to the maximum power point of solar panels. It enhances efficiency and performance in both series and parallel configurations, ensuring optimal energy harvesting.
7.1 Role of MPPT Controllers in Optimizing Energy Output
MPPT controllers play a crucial role in optimizing energy output by dynamically adjusting solar panel connections to operate at their maximum power point. This ensures maximum energy capture, especially under varying conditions like shading or temperature changes. By continuously tracking and adapting to the optimal voltage and current, MPPT controllers significantly enhance efficiency in both series and parallel configurations, maximizing overall system performance and reliability.
7.2 Differences in MPPT Efficiency for Series vs. Parallel Connections
MPPT controllers exhibit varying efficiency in series and parallel connections due to differences in voltage and current characteristics. Series connections often allow for higher voltage, which can be more efficiently tracked by MPPT controllers. Parallel connections, while offering higher current, may experience slight efficiency losses due to mismatched panel performance. The choice of configuration depends on system design and load requirements to maximize energy harvest.
Safety Considerations for Series and Parallel Solar Panel Connections
Safety is paramount in solar systems. Overcurrent protection and thermal management are critical. Surge protectors and disconnects prevent damage. Proper wiring ensures safe and reliable energy production always.
8.1 Overcurrent Protection in Series and Parallel Systems
Overcurrent protection is essential for solar systems to prevent damage from excessive current. Series systems often use circuit breakers or fuses to safeguard against short circuits or arcs. Parallel systems are more prone to ground faults, requiring robust protection devices. Proper installation ensures system longevity and safety, avoiding potential fire hazards or component failure.
8.2 Thermal Management and Heat Resistance
Elevated temperatures can reduce solar panel efficiency and lifespan. Proper thermal management is critical, with ventilation and cooling systems often employed. Series connections may experience hotter spots due to higher voltages, while parallel systems can face uneven heating. Ensuring panels are well-ventilated and using heat-resistant materials helps maintain performance and longevity under varying environmental conditions.
Tools and Resources for Designing Solar Panel Systems
Designing solar panel systems requires specialized tools and resources. Software like PVWatts and SolarPath help calculate series and parallel configurations. PDF guides and manuals provide essential installation details.
9.1 Software for Calculating Series and Parallel Configurations
Software tools like PVWatts and SolarPath are essential for designing solar systems. They allow users to simulate series and parallel configurations, calculate voltage, current, and power output. These programs ensure optimal system performance by analyzing shading effects and energy yields. PDF guides generated from this software provide detailed installation and configuration recommendations for solar panel setups.
9.2 PDF Guides and Manuals for Solar Panel Connections
PDF guides and manuals provide comprehensive details for solar panel connections. They include diagrams, voltage-current calculations, and installation steps for series and parallel setups. These resources often cover troubleshooting tips, safety protocols, and best practices. Manufacturers and experts publish these guides to ensure safe and efficient solar system configurations, making them invaluable for installers and DIY enthusiasts alike.
Case Studies and Real-World Examples
Real-world examples demonstrate successful solar panel installations using series and parallel connections. Case studies highlight how optimal configurations maximize energy output and efficiency in various applications.
10.1 Successful Series-Connected Solar Panel Installations
Series-connected solar panel installations have proven effective in large-scale applications, such as solar farms and off-grid systems. Case studies show that series connections optimize voltage levels, reducing current and energy loss. For example, a series-connected system in a remote area achieved high efficiency using MPPT controllers, ensuring maximum power output even under varying conditions. These examples demonstrate the reliability and efficiency of series configurations in real-world scenarios.
10.2 Successful Parallel-Connected Solar Panel Installations
Parallel-connected solar panel installations excel in residential and commercial systems, offering flexibility and scalability. For instance, a home with multiple panels connected in parallel maintained consistent energy output despite shading on some panels. Similarly, an RV system using parallel connections ensured reliable charging even when one panel underperformed. These examples highlight the practical benefits of parallel configurations in diverse applications.
Future Trends in Solar Panel Connectivity
Future trends include advanced series-parallel hybrids, smart inverters, and AI-driven MPPT controllers, enhancing efficiency and scalability for various energy systems globally.
11.1 Advancements in Series and Parallel Connection Technologies
Advancements in series and parallel connections include improved MPPT controllers, smart inverters, and modular designs. These technologies optimize energy output, reduce losses, and enhance system scalability. Emerging innovations like AI-driven monitoring and adaptive wiring solutions are expected to further boost efficiency and reliability in solar panel connectivity, ensuring better performance across varying conditions and applications.
11.2 Emerging Applications for Hybrid Configurations
Hybrid solar systems combining series and parallel connections are being explored for portable chargers, electric vehicles, and off-grid solutions. These configurations enhance flexibility and efficiency, especially in applications requiring variable voltage and current outputs. Advances in smart inverters and modular designs are driving innovation, enabling hybrid systems to power diverse loads efficiently while minimizing energy losses and improving overall performance.
Solar panel connections in series and parallel optimize energy systems, balancing voltage and current for efficiency and safety. Proper configuration ensures maximum energy output and system reliability.
12.1 Summary of Key Concepts
Solar panels connected in series increase voltage while maintaining current, whereas parallel connections maintain voltage and increase current. MPPT controllers optimize energy output, ensuring efficiency in both configurations. Proper wiring and safety measures, like overcurrent protection, are essential. Understanding these principles helps in designing reliable and efficient solar systems for various applications, from residential to commercial setups, ensuring maximum energy harnessing and system longevity.
12.2 Best Practices for Solar Panel Connections
Always assess system voltage and current requirements before configuring panels. Use MPPT controllers to optimize energy output. Ensure proper wiring to minimize energy loss and prevent safety hazards. Install overcurrent protection devices to safeguard against faults. Regularly monitor system performance and follow manufacturer guidelines for panel compatibility. Maintain proper thermal management and inspect connections periodically for reliability and efficiency.
